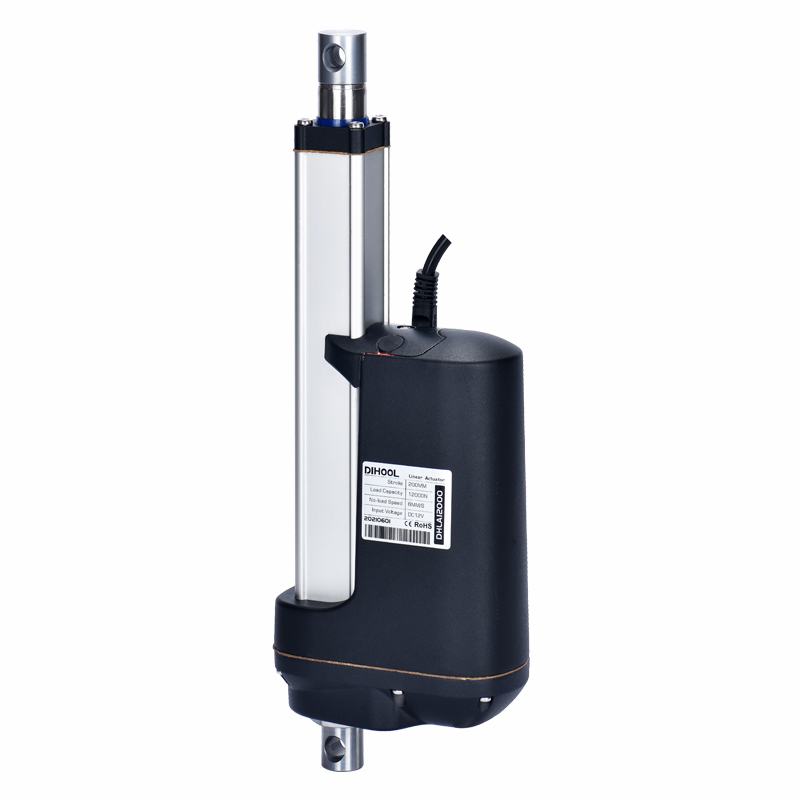

DHLA12000 Industrial Heavy Duty Linear Actuator 36V A1

Stroke:
  • 50MM
  • 100MM
  • 150MM
  • 200MM
  • 250MM
  • 300MM
  • 350MM
  • 400MM
  • 450MM
  • 500MM
  • 600MM
  • 700MM
  • 800MM
  • 900MM
  • 1000MM
  • 1100MM
  • 1200MM
  • 1300MM
  • 1400MM
  • 1500MM
  • 1600MM
  • 1700MM
  • 1800MM
  • 1900MM
  • 2000MM
Speed:
  • 6.5MM/S
  • 8.5MM/S
  • 13MM/S
  • 17MM/S
  • 20MM/S
  • 30MM/S
  • 40MM/S
  • 60MM/S

Voltage:36V
Current:6.6Amp
Max Load:12000N
Max Speed:60MM/S
Stroke:50-2000MM



About this item

1. Heavy-Duty Performance: The DHLA12000 industrial actuator supports a substantial maximum load of 12000N, ensuring reliable operation for heavy tasks.

2. Robust Self-Locking: With a self-locking force of 1.5 tons, this actuator guarantees secure positioning even under extreme loads.

3. Efficient Speed: Achieving a maximum speed of 60MM/S, the DHLA12000 offers efficient and swift linear motion.

4. Motor Versatility: The actuator is compatible with DC12V, DC24V, DC36V, and DC48V motors, providing flexibility in power sources.

5. Durability and Protection: Powder metallurgy gears ensure wear-resistance and longevity, while the built-in PCB circuit board offers overload protection and limit switch functionality for automated stopping. With an IP68 waterproof, dustproof, oil-proof, and anti-corrosion rating, it excels in challenging environments. The dual clutch protection prevents damage from higher loads, ensuring durability.

Product Description

PRODUCT DESCRIPTION

DHLA12000 industrial high protection grade electric linear actuator adopts stainless steel inner tube, the maximum load is 12000N, the maximum self-locking force is 1.5 tons, and the maximum speed is 60MM/S. The actuator uses DC12V / DC24V / DC36V / DC48V motor to work. The product adopts powder metallurgy gears, which are wear-resistant, highstrength and long-life; built-in PCB circuit board, overload protection, built-in limit switch, can automatically stop; IP68 grade waterproof, dustproof, oil-proof and anti-corrosion. Industrial linear actuators have dual clutch protection, which can effectively prevent damage to the push rod caused by higher product loads.

TECHNICAL PARAMETERS

Motor Power240W
VoltageDC36V
Speed (MM/S)6.58.5131720304060
Load Pull Capacity(N)12000110001000070006500400030002000
Load Push Capacity(N)12000110001000070006500400030002000
Self-locking Capacity(N)15000120001200080008000500040003000
Material304 Stainless Steel + Aluminum
Mechanical LifeMore than 300,00 times
Stroke Length50mm-2000mm
Operating Temperature-40°C~+65°C
Operating Frequency10% max 2min. continuous use
ColorBlack
Limit SwitchesBuilt-in
Protection Classlp68
Noise65dB
Lead Screw TypeTurbine Screw

OUTLINE DIMENSION DRAWING
