IPS-P14 Boost Voltage Regulator
Input Voltage:
  • 12V
  • 24V
Output Voltage:
  • 24V
  • 30V
Max Current:
  • 15A
Quantity:
Add to Inquiry
About this item

Model: IPS-P14

Input: 12V~32V

Output: 12V~46V

Max Power: 150W

Operation Temperature: -40°C~+85°C

Receiving Frequency: 150KHz

Output Power: Natural heat dissipation 6A, enhanced heat dissipation 10A

Product Description

TECHNICAL PARAMETERS

ModelIPS-P14Short Circuit ProtectionYes
Input12V~32VReversed-Curret ProtectionNo
Output12V~46VDimensions85*60*33mm
Max Power150WModule NatureNon isolated boost module
Operation Temperature-40°C~+85°CWeight102.3g
Receiving Frequency150KHzInversion EfficiencyUp to 95%
Output PowerNatural heat dissipation 6A, enhanced heat dissipation 10A

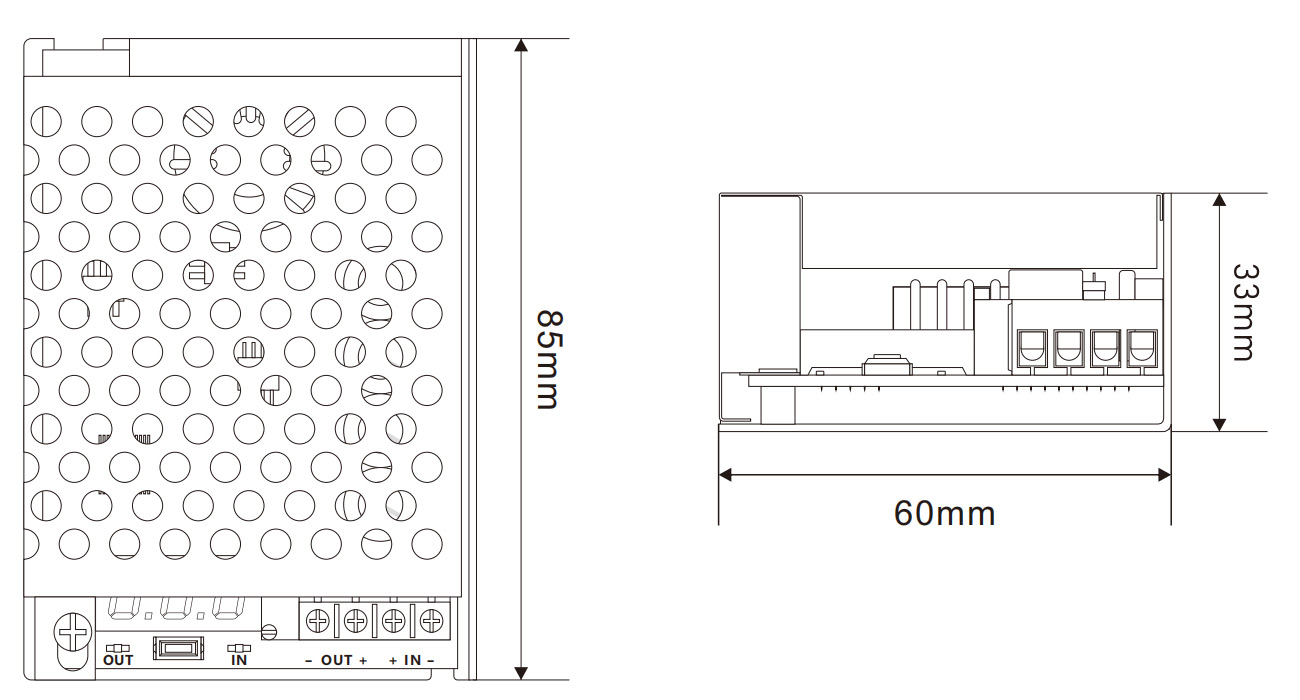

DIMENSIONS
