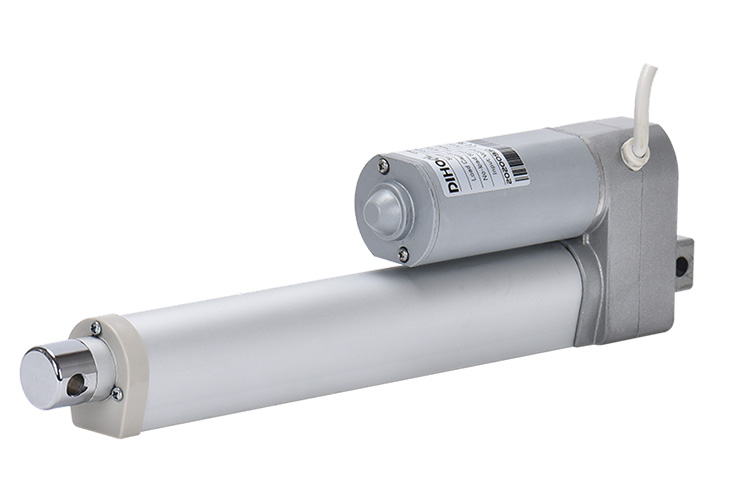

DHLA4000 Electric Linear Actuator 24V

Stroke:
  • 100MM
  • 150MM
  • 200MM
  • 250MM
  • 300MM
  • 350MM
  • 400MM
  • 450MM
  • 500MM
  • 600MM
  • 700MM
  • 800MM
  • 900MM
  • 1000MM
Speed:
  • DC24V5MMS4000N
  • DC24V10MMS2000N
  • DC24V15MMS1300N
  • DC24V20MMS800N

Voltage: 24V
Current: 2.3Amp
Max Load: 4000N
Max Speed: 26MM/S
Stroke: 100-1000MM



About this item

1. Low-Noise Performance: Equipped with a 30dB low-noise plastic motor gear, the DHLA4000 ensures quiet and unobtrusive operation while maintaining exceptional performance.

2. Impressive Load Capacity: With a maximum load capability of 4000N, this electric linear actuator offers robust power to handle a wide range of tasks effectively.

3. Swift Movement: Achieve a maximum speed of 26MM/S, allowing for efficient and rapid linear motion suited for various applications.

4. Versatile Application: Ideal for medical, furniture, and industrial sectors, the DHLA4000 adapts seamlessly to different fields, meeting diverse needs.

5. Wide Automation Compatibility: Suitable for integration into automatic control systems, this actuator finds utility in windows of construction vehicles, cleaning vehicles, ships, and cargo holds, enhancing automation and convenience.

Product Description

PRODUCT DESCRIPTION

Achieving precision performance, the DHLA4000 electric linear actuator is engineered with a 30dB low-noise plastic motor gear. Its robust design allows it to handle impressive loads, with a maximum capacity of 4000N, making it ideal for a wide range of applications in fields like medical, furniture, and industrial settings.

With a rapid maximum speed of 26MM/S, this actuator ensures swift and efficient linear motion. Moreover, its versatility shines through as it can seamlessly integrate into the automatic control systems of various vehicles, including construction vehicles, cleaning vehicles, as well as on ships and within cargo holds.

Experience top-notch linear motion solutions with the DHLA4000, perfectly suited for your diverse needs.

TECHNICAL PARAMETERS

Voltage DC24V
Speed (MM/S) 5 10 15 26
Load Pull Capacity(N) 4000 2000 1300 750
Load Push Capacity(N) 4000 2000 1300 750
Self-locking Capacity(N) 4000 2000 1300 750
Stroke Length 100mm-1000mm
Motor Power 55W
Limit Switches Built-in
Operating Frequency 10%max 2min. continuous use
Operating Temperature 0°C~+40°C
IP Grade IP43
Noise <30dB
Inner Tube Aluminum Tube
Lead Screw Type Type T
Mechanical Life More than 300,00 times




OUTLINE DIMENSION DRAWING
